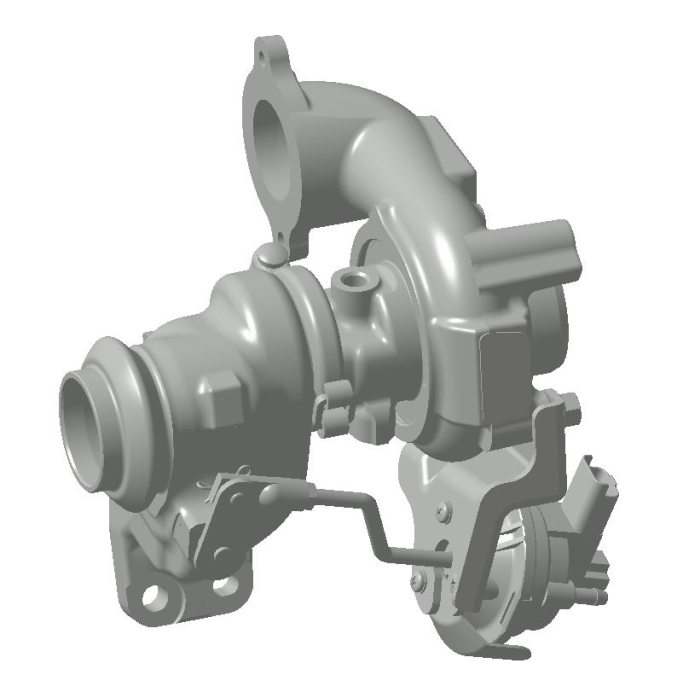

Single scroll turbine for diesel

Single scroll turbo applications are used in a majority of the gasoline applications and in a few diesel applications. Single scroll Turbochargers are a cost-efficient means to increase drivability and output from a low displacement ICE or to generate high performance output for medium to large sized engines.

Functionality
A single scroll fixed geometry turbocharger design is characterized by a single volute for the turbine housing, transforming exhaust energy into compressor rotation. Designs can be straightforward and provide high efficiency for a chosen flow range.

Single scroll fixed geometry turbochargers can be seen as a basic entry level or conventional turbocharger; more complex turbocharger technology such as Twin scroll, Variable Geometry (VG) or 2-stage technology is intended to either broaden the usable flow range or provide higher efficiency over a broader working range of the turbocharger.

Single scroll turbines can be provided for any desired flow range. Common designs range from single entry for cylinder head integrated manifolds to complex integrated casted manifold-designs. Our single scroll turbochargers are capable of operating at high turbine inlet temperatures up to 850 degrees for diesel applications.
